Plaub Cheebtsam Txheem Polyurethane Ntsaws Ua Tshuab

Tshuab piav qhia

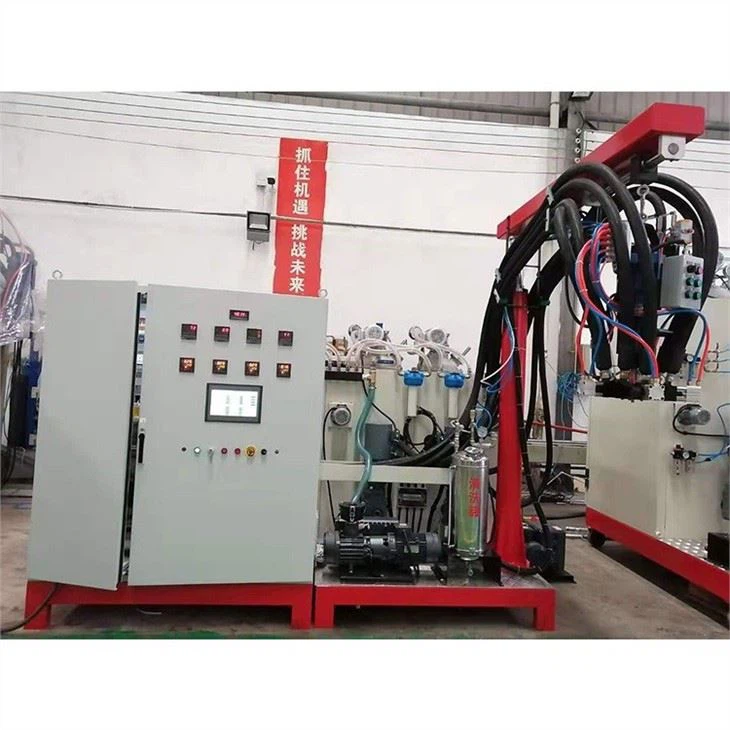

Tshuab Qauv: CPU20J-S

Cov Nta Zoo:

ØZCE casting polyurethane tshuab yog lub tshuab ua lag luam txhim khu kev qha tau zoo rau kev tswj hwm koj txhua hnub kom zoo. Kev cai txiav kev muaj peev xwm.

Cov chav sib xyaw:

Nyob ntawm qhov ntsuas ntawm tag nrho cov ntim ntim thiab qhov sib xyaw ua kom sib xyaw uas yuav tsum tau ua los ntawm kev tsim, A, B thiab C xaiv qhov siab ceev qhov ntsuas siab nrog lub siab tiv thaiv qhov kub thiab qhov qis uas nws qhov kev ntsuas tsis tseeb tsis dhau (+0.5 %). Thaum qhov kub, viscosity lossis siab ntawm cov ntaub ntawv raw hloov, qhov ntsuas thiab qhov ntsuas yog ib txwm muaj tseeb thiab ruaj khov.

Txhawm rau ntsuas qhov hloov chaw ntawm lub twj tso kua mis kom raug, lub tshuab siv synchronous lub cev muaj zog thiab lub tshuab nrawm nrawm los tsav lub actuator thiab hloov nws nrawm los kho.

Cov sib tovtaub hau:

Lub tshuab yog nruab nrog precision iav twj uas tswj tau qhov tseeb. Nov nyob rau hauv cov zis zoo ib yam thiab cov piv txwv raug.

(1) Lub tshuab sib xyaw siv cov khoom siv coj los tiv thaiv kev tiv thaiv nrog cov qauv zoo thiab hloov tau yooj yim yog li cov pob zeb sib xyaw tuaj yeem khiav ntawm kev kub ceev yam tsis tau npaj siab thiab channel.

(2) Lub taub hau sib xyaw ua los ntawm cov plaub hau ncaj taub hau sib xyaw cov hlau tsis huv, uas yog lub teeb thiab ruaj, xyuas kom zoo rau cov khoom sib xyaw thiab tsis muaj npuas.

(3) Lub cev muaj zog ntawm lub taub hau sib xyaw tig ntawm kev kub ceev hauv chav sib xyaw ua ke los ntawm kev nce siab ntawm kev sib xyaw lub taub hau los ntawm kev hloov pauv ntau zaus. Thaum cov kua nyoos hloov pauv los ntawm rab koob valve mus rau lub xeev, nws nkag rau hauv chav sib xyaw ua ke ntawm lub qhov sib sib zog nqus thiab tau txhaj rau saum npoo ntawm cov roj hmab kev sib hloov.Thaum tu, cov kuab tshuaj nkag rau hauv chav sib xyaw kom ntxuav lub taub hau sib xyaw rau xyuas kom lub lag luam tom ntej; zoo li qub siab tau teeb tsa rau ntawm cov yeeb nkab pub noj, tuaj yeem ua kom zoo nrog viscosity tsawg dua 50 CPS kom paub tseeb tias lub system ua haujlwm siab, thiab qhov sib npaug ntawm cov khoom siv hauv cov txheej txheem sib tov yog qhov ruaj khov.

(4) Lub cev muaj zog 2.2kw 2P tig rau 3000-5000r.pm thiab ncua 600m m-1000m m (raws li qhov loj me ntawm yob kom txiav txim siab) txog 1100m m-1400m m tawm hauv av.

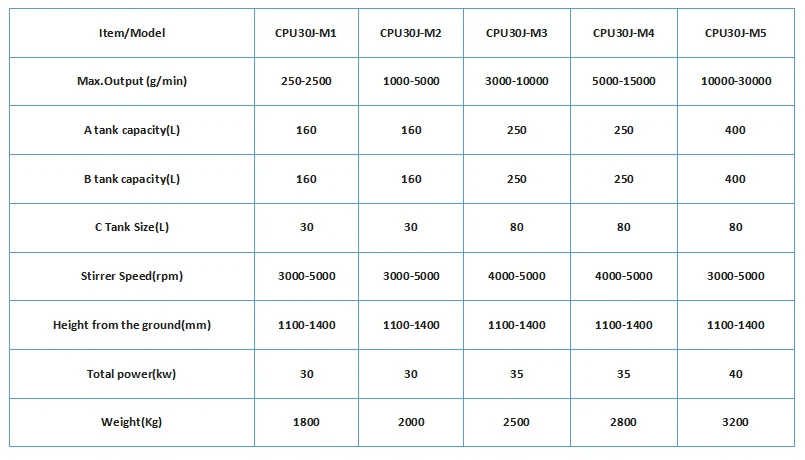

Kev tsis

1.Qhov lus piav qhia: 250 ~ 500g / min

2.Txhais-theem AC 380V + xoom kab + (hauv av) zaus: 50HZ tag nrho fais fab 35KW xaim 10 square kab

3. Airsource: Sab nraud lub cheeb ntawm cov inlet yeeb nkab yog 8 hli thiab lub siab yog 0.6 ~ 0.8MPa.

4.Txhais cov khoom sib xyaw ua ke sib xyaw: A: B: C=100: 205 ~ 27: 5 ~ 20

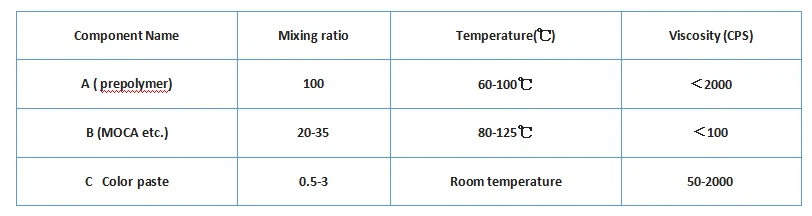

Raw tshuaj Cheebtsam

Rau cov zis: g / min

FAQ:

Q: Puas yog koj lub Hoobkas lossis tuam txhab lag luam?

A: Yog lawm. Peb yog cov kws tshaj lij polyurethane khoom lag luam. Pib xyoo 1998.

Q: Lub sij hawm xa dab tsi?

A: Nquag xa lub sijhawm 20-60days.

Q: Koj puas muaj cov kev pab khoom raw kuaj?

A: Yog lawm, peb tuaj yeem pab qhia txog cov khoom lag luam

Q: Dab tsi yog koj lub sijhawm ntawm kev xa khoom?
A: Peb lub sijhawm siv xa khoom yog FOB ningbo. Peb kuj lees txais EXW, CFR, CIF.

Q: Koj qhov kev pabcuam shipping yog dab tsi?

A: Peb tuaj yeem muab kev pabcuam rau kev ua tiav nkoj, kev ua haujlwm khoom muag, kev tshaj tawm kev lis kev cai, kev xa cov ntawv xa khoom xa tuaj thiab thauj khoom xa tuaj ntawm chaw nres nkoj shipping

Q: WhencanIgettheprice?
A: Feem ntauwequotewithin8hoursafterwegetyourinquiry.

Q: Koj tus MOQ yog dab tsi?

A: OEM / ODM MOQ Kuv teeb

Q: Koj lub sijhawm them nyiaj yog dab tsi?

A: 30% tso cia them ua ntej tsim khoom thiab 70% tshuav nyiaj them ua ntej khoom xa tuaj.

Q: Cov nqe lus them nqi twg koj tuaj yeem lees txais?

A: T / T, Western Union, PayPal thiab lwm yam.

Cim npe nrov: plaub lub tshuab polyurethane cov ntsaws ruaj ruaj ua tshuab, Suav teb, lwm tus neeg, manufacturers, hoobkas, lag luam wholesale, yuav, pheej yig, tej, customized, nqi qis, hauv Tshuag, cov qauv dawb, ua hauv Suav
